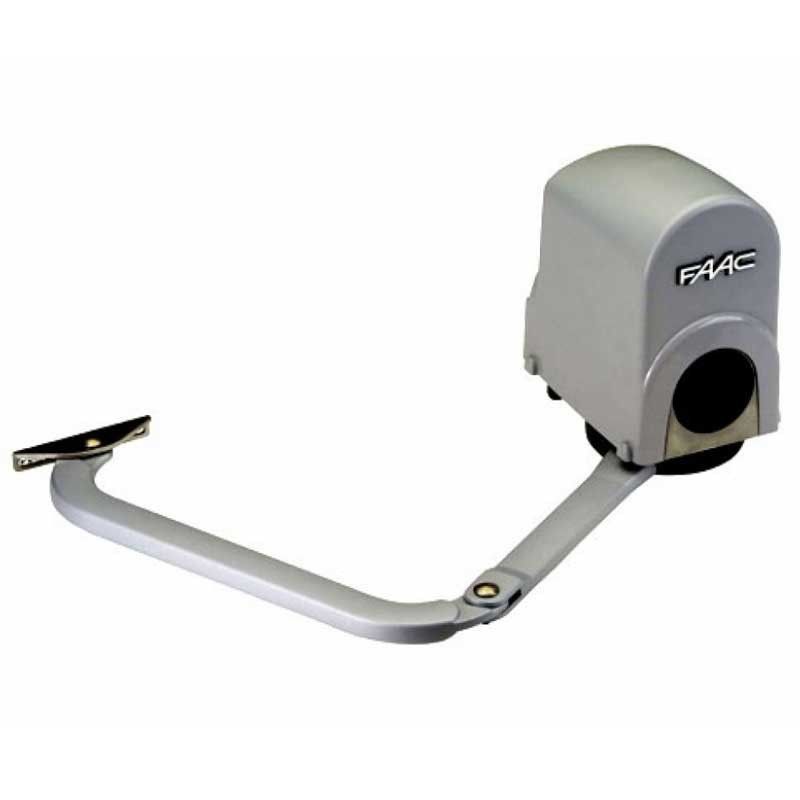

FAAC 391 24V Slave Operator - 104577

Description

FAAC 391 24V Slave Operator costs less at the Electric Gate Store. Never beaten on price.

Electro-mechanical operator with articulated arm for residential swing leaf gates with single max lenth of 2m (2.5m with an electric lock).

More Details:

• Compact, elegant design. Width the crucial overall dimensions is as little as 185mm
• Versatile, simple installation. The articulated arm allows high flexibility for the installation dimensions, enabling use also on large gate piers
• With the non reversing gearmotor, there is no need to install electro-mechanical closing devices. In case of a powercut, the rotation of the (key protected) release device alone, makes it possible to move the gate manually
• The system has non reversing motors that hold the gates in the open and closed positions
• Built in mechanical stops: no need to install opening and closing mechanical stops
• New electronic control unit with anti-crushing device and virtual encoder with reverse function upon detection of obstacle

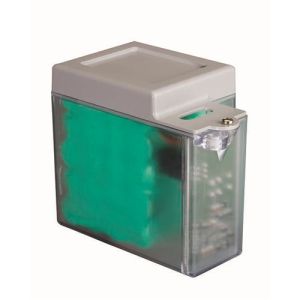

• Emergency battery to ensure operation in case of powercut (optional)
• There is an option to add BUS XIB interface for applications using NON BUS devices
• To ensure correct operation, make sure that the distance between the gate hinge and any walls or lateral fencing is greater than 725mm.
• Use frequency 80 cycles per day.
