FAAC 391 Single Kit - 391 UK KIT S

Description

FAAC 391 Single Kit costs less at the Electric Gate Store. Never beaten on price.

Electro-mechanical gate kit with articulated arm for residential swing leaf gates with single max lenth of 2m (2.5m with an electric lock). Use frequency 80 cycles per day.

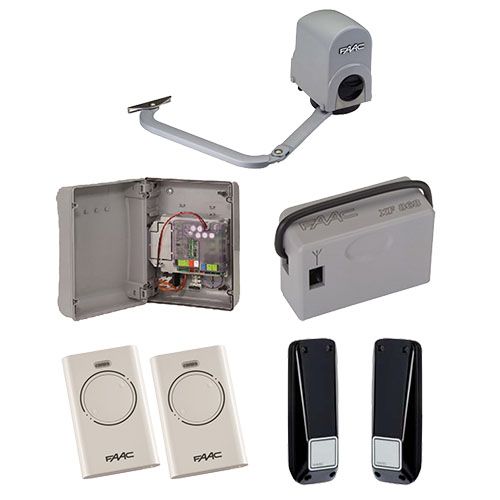

Kit Includes:

• 104576 - 1 x 391E 24V Master Operator
• 785103 - 1 x XP20B D BUS Directional Photocell
• 787832 - Receiver XF 868
• 787009 - 2 x XT2 868 SLH LR 2 Button White

More Details:

• Compact, elegant design. Width the crucial overall dimensions is as little as 185mm
• Versatile, simple installation. The articulated arm allows high flexibility for the installation dimensions, enabling use also on large gate piers
• With the non reversing gearmotor, there is no need to install electro-mechanical closing devices. In case of a powercut, the rotation of the (key protected) release device alone, makes it possible to move the gate manually
• The system has non reversing motors that hold the gates in the open and closed positions
• Built in mechanical stops: no need to install opening and closing mechanical stops
• New electronic control unit with anti-crushing device and virtual encoder with reverse function upon detection of obstacle
• Emergency battery to ensure operation in case of powercut (optional)
• There is an option to add BUS XIB interface for applications using NON BUS devices
• To ensure correct operation, make sure that the distance between the gate hinge and any walls or lateral fencing is greater than 725mm
